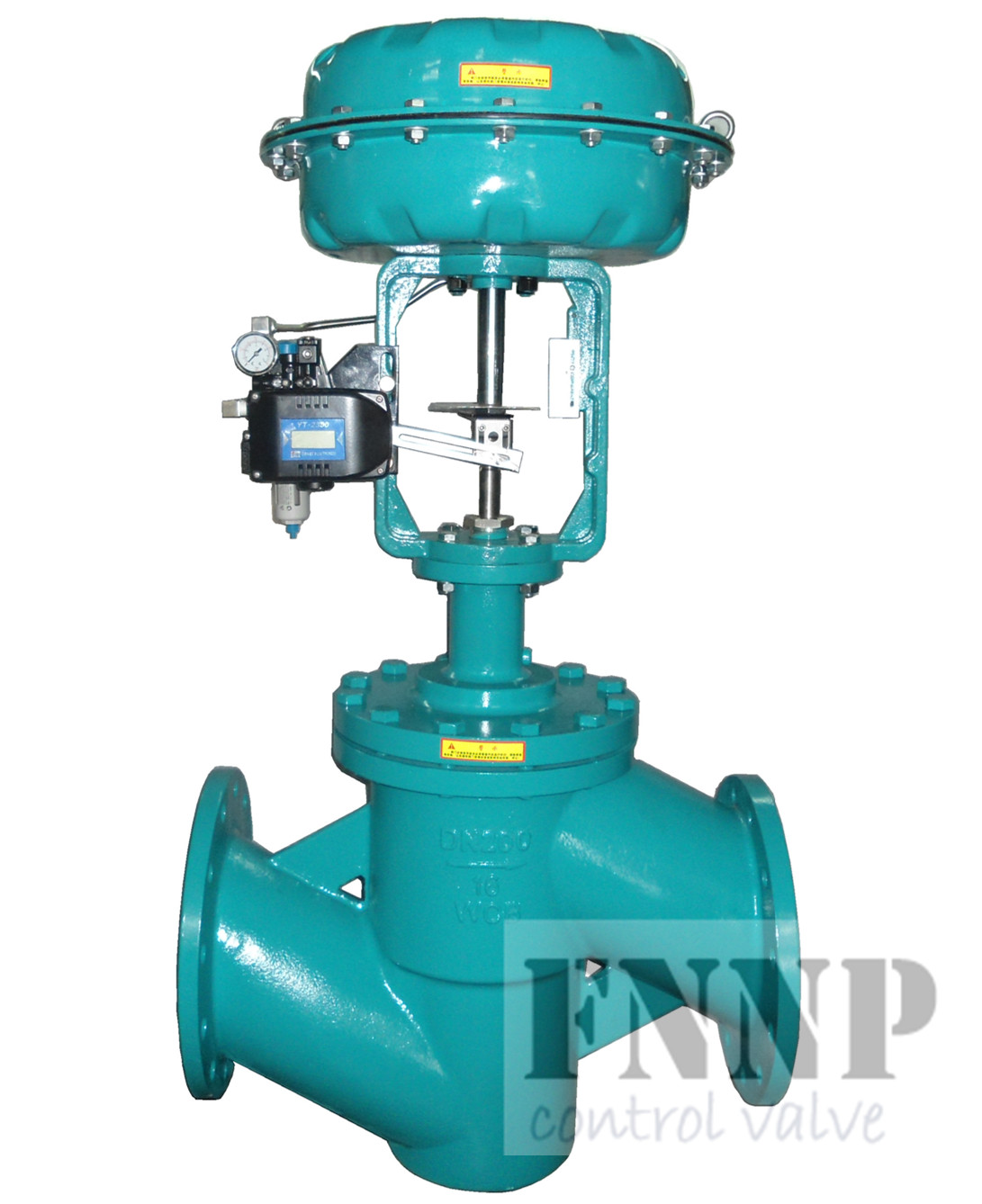

FPQ21F系列气动薄膜衬氟单座调节阀
-
·通径：3/4”~8”(DN20~DN200)
·压力：ANSI CLASS150
GB PN10.16
JIS 10K
·法兰标准：GB/T 9112-9124
(含HG/T20592-20635)
ASME B16.5,JIS B2220
·结构长度：IEC60534
·流量特性：快开，等百分比，直线
·阀杆密封：波纹管加填料密封式，
填料密封式
·可调比：50:1
·执行器：气动，电动
·衬里材料：PFA，F46，PTFE
·阀门设计符合：DIN En1349
(同时满足ANSI，GB，JIS标准)
·泄漏标准：ASME B16.104
1、耐腐蚀：阀体内腔、阀芯、阀座、阀杆均包衬2.5-3mm厚的F46，能耐酸、碱、耐强腐蚀。
2.密封性能好：采用聚四氟乙烯材质的波纹管和填料双重密封，确保无渗漏。
3.泄露量小：由于阀芯、阀座是软密封，故泄露量低于国家Ⅳ级标准。
4、采用HA多弹簧执行机构，体积小重量轻，调节精度高。
-
