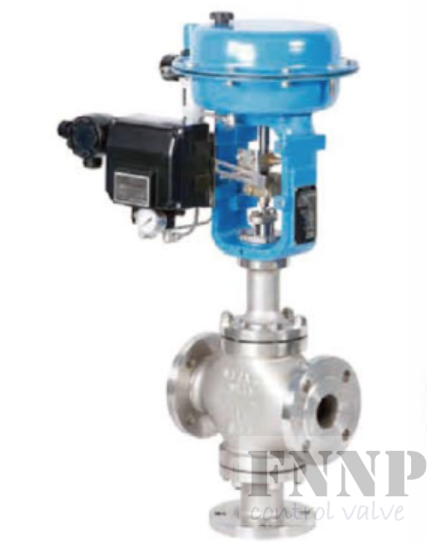

FPQ23系列气动三通调节阀
-
FPQ23系列气动三通调节阀（分流/合流）采用圆筒型薄壁窗口形阀芯导向，不同于柱塞形阀芯的衬套导向。配用多弹簧执行机构，具有结构简单、重量轻、体积小、拆装方便等优点。广泛应用于精确控制气体、液体等介质的工艺如压力、流量、温度、液位保持在给定值。适合于把一种流体通过三通阀分成二路流出或把两种流体经三通阀合并成一种流体的场合。
本系列产品有三通合流及三通分流两种。公称压力有PN16、40、64；公称通径范围DN25—300。适用流体温度由-60℃至+450℃。泄漏量标准为Ⅳ级。流量特性有直线、抛物线两种。
控制阀门开度,达到对压力、流量、液位、温度等工艺参数的调节。具有动作灵敏、连线简单、流量大、体积小、具有调节精度高，动作稳定可靠等优点。合流型主要用于将两种流体混合成第三种流体；分流型主要用于将一股流体分成两股流体。该产品可代替两台互为开关的单、双座调节阀，用于液体、气体、蒸汽等介质的调节与控制。在某些场合可以替代两个两通阀和一个三通接管。 出厂时已经将零点量程调试完毕，用户接通气源输入信号即可运转使用。
·型式：三通型
·阀体型式：三通分流阀，三通合流阀
·通径：1”~6”(DN5~DN150)
·压力：PN16-63，ANSI 150-600，
JIS 10K-30K
·法兰标准：GB/T 9112-9124
(含HG/T20592-20635)
ASME B16.5,JIS B2220
·结构长度：IEC60534-3-1
·流量特性：直线，快开
·阀盖形式：标准型，延伸型，波纹管型
·可调比：50:1
·执行器：手动，气动，电动，电液联动
·阀门设计符合：DIN En1349
(同时满足ANSI，GB，JIS标准)
·泄漏标准：ASME B16.104
-
